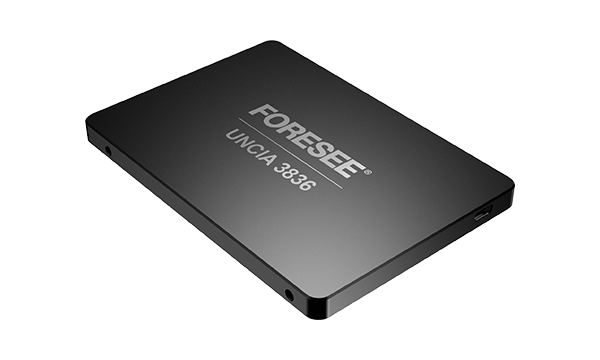

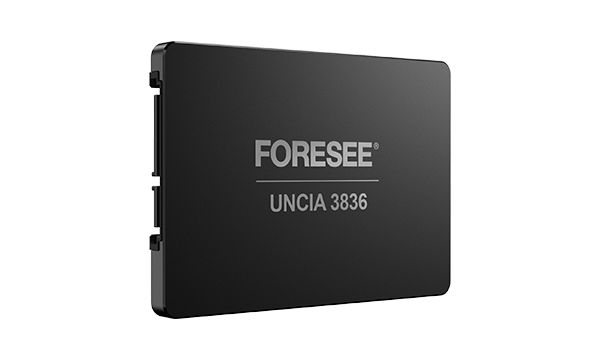

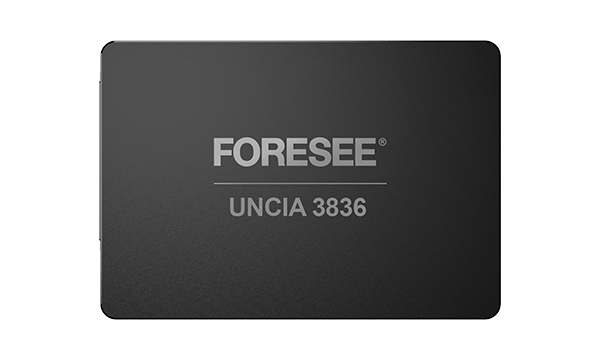

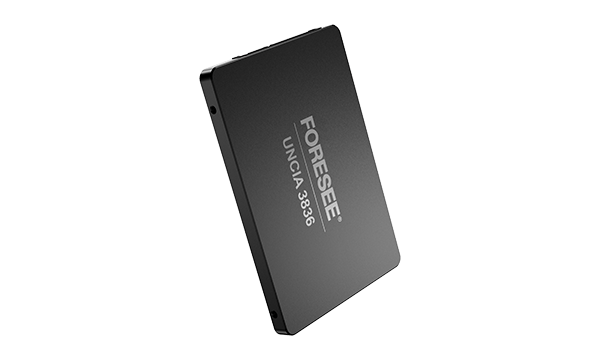

FORESEE UNCIA 3836 Series Enterprise SATA SSD

FORESEE is committed to creating enterprise-class SSD series UNCIA 3836 SSD, SATA SSD supporting SATA3.2, providing mainstream solutions with capacity up to 3.84TB, and Sequential Read up to 560MB/s*.
Product Advantages

Outstanding Performance:
UNCIA 3836 series supports SATA3.2 interfaces and carries built-in performance optimization and thus guar-antees high level of QoS and IO consistency.It delivers reach 560MB/s* Sequential read throughput and 95K* Random Read IOPS. This ensures high performance and steady data service in wide-range of enterprise appli-cations.
Reliable Data Storage:
Through rigorous design, simulation and verification, UNCIA 3836 can meet the reliability standard of 2 million hours of MTBF; it supports enhanced PLP, RAID, and security features. Specifically designed for the enterprise usage, focusing on data protection for a variety of applications.

Consult Now GO
Product Parameter
Product Series PN NAND Flash Capacity Form Factor Size Interface 128KB Sequential Read Speed* 128KB Sequential Write Speed* 4KB Random Read Speed(IOPS)* 4KB Random Write Speed(IOPS)* Endurance Warranty Period Uncorrectable Bit Error Rate(UBER) Mean Time Between Failure (MTBF) Power Consumption Operating Temperature
UNCIA 3836 RSYE3836N-480G 128 layer 3D eTLC 480GB 2.5inch 100×70×7mm SATA III 560MB/s 520MB/s 94K IOPS 30K IOPS 1DWPD 5 years ＜1 sector per 10^17 bits read 2 million hours Active:<4W
Idle:<2W 		Tc:0℃~70℃
UNCIA 3836 RSYE3836M-480G 128 layer 3D eTLC 480GB 2.5inch 100×70×7mm SATA III 560MB/s 520MB/s 94K IOPS 73K IOPS 1DWPD 5 years ＜1 sector per 10^17 bits read 2 million hours Active:<4W
Idle:<2W 		Tc:0℃~70℃
UNCIA 3836 RSYE3836N-960G 128 layer 3D eTLC 960GB 2.5inch 100×70×7mm SATA III 560MB/s 520MB/s 95K IOPS 45K IOPS 1DWPD 5 years ＜1 sector per 10^17 bits read 2 million hours Active:<4W
Idle:<2W 		Tc:0℃~70℃
UNCIA 3836 RSYE3836N-1920 128 layer 3D eTLC 1.92TB 2.5inch 100×70×7mm SATA III 560MB/s 520MB/s 95K IOPS 45K IOPS 1DWPD 5 years ＜1 sector per 10^17 bits read 2 million hours Active:<4W
Idle:<2W 		Tc:0℃~70℃
UNCIA 3836 RSYE3836N-3840 128 layer 3D eTLC 3.84TB 2.5inch 100×70×7mm SATA III 560MB/s 520MB/s 95K IOPS 50K IOPS 1DWPD 5 years ＜1 sector per 10^17 bits read 2 million hours Active:<3.5W
Idle:<1.3W 		Tc:0℃~70℃
UNCIA 3836 RSYE3836B-480G 128 layer 3D eTLC 480GB 2.5inch 100×70×7mm SATA III 560MB/s 520MB/s 94K IOPS 28K IOPS 1DWPD 5 years ＜1 sector per 10^17 bits read 2 million hours Active:<3.5W
Idle:<1.3W 		Tc:0℃~70℃
UNCIA 3836 RSYE3836B-960G 128 layer 3D eTLC 960GB 2.5inch 100×70×7mm SATA III 560MB/s 520MB/s 94K IOPS 45K IOPS 1DWPD 5 years ＜1 sector per 10^17 bits read 2 million hours Active:<3.5W
Idle:<1.3W 		Tc:0℃~70℃
UNCIA 3836 RSYE3836B-1920 128 layer 3D eTLC 1.92TB 2.5inch 100×70×7mm SATA III 560MB/s 520MB/s 95K IOPS 45K IOPS 1DWPD 5 years ＜1 sector per 10^17 bits read 2 million hours Active:<3.5W
Idle:<1.3W 		Tc:0℃~70℃
UNCIA 3836 RSYE3836B-3840 128 layer 3D eTLC 3.84TB 2.5inch 100×70×7mm SATA III 560MB/s 520MB/s 95K IOPS 45K IOPS 1DWPD 5 years ＜1 sector per 10^17 bits read 2 million hours Active:<3.5W
Idle:<1.3W 		Tc:0℃~70℃
UNCIA 3836 RSYE3836T-480G 128 layer 3D eTLC 480GB 2.5inch 100×70×7mm SATA III 560MB/s 520MB/s 94K IOPS 75K IOPS 3DWPD 5 years ＜1 sector per 10^17 bits read 2 million hours Active:<3.5W
Idle:<1.3W 		Tc:0℃~70℃
UNCIA 3836 RSYE3836T-960G 128 layer 3D eTLC 960GB 2.5inch 100×70×7mm SATA III 560MB/s 520MB/s 95K IOPS 75K IOPS 3DWPD 5 years ＜1 sector per 10^17 bits read 2 million hours Active:<3.5W
Idle:<1.3W 		Tc:0℃~70℃
UNCIA 3836 RSYE3836T-1920 128 layer 3D eTLC 1.92TB 2.5inch 100×70×7mm SATA III 560MB/s 520MB/s 95K IOPS 75K IOPS 3DWPD 5 years ＜1 sector per 10^17 bits read 2 million hours Active:<3.5W
Idle:<1.3W 		Tc:0℃~70℃

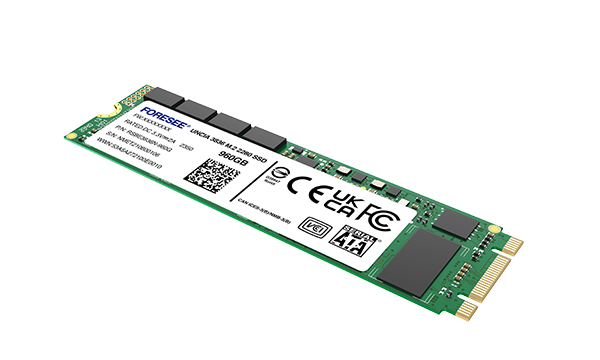

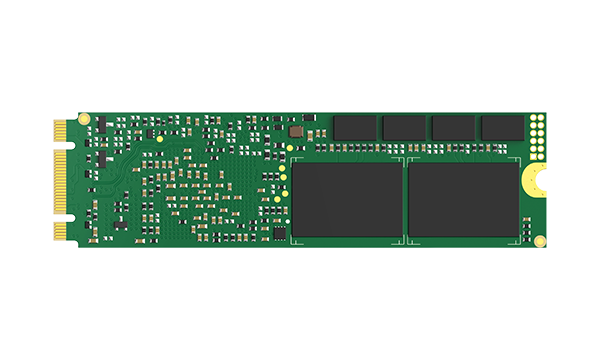

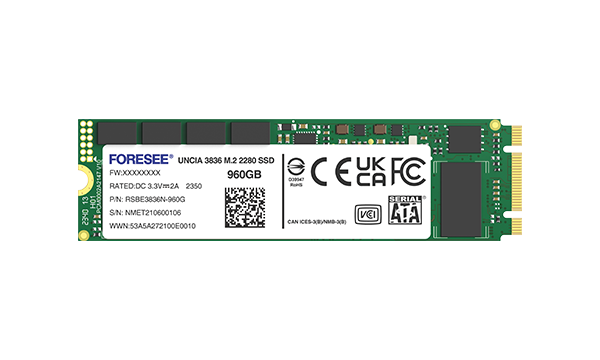

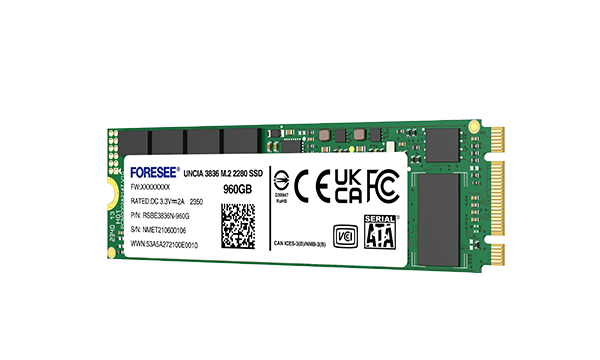

UNCIA 3836 RSBE3836B-480G 128 layer 3D eTLC 480GB M.2 22×80mm SATA III 560MB/s 520MB/s 94K IOPS 28K IOPS 1DWPD 5 years ＜1 sector per 10^17 bits read 2 million hours Active:<3.5W
Idle:<1.3W 		Tc:0℃~70℃
UNCIA 3836 RSBE3836B-960G 128 layer 3D eTLC 960GB M.2 22×80mm SATA III 560MB/s 520MB/s 95K IOPS 45K IOPS 1DWPD 5 years ＜1 sector per 10^17 bits read 2 million hours Active:<3.5W
Idle:<1.3W 		Tc:0℃~70℃
Performance test refer to SNIA SSS-PTS-E Test Specification
Impact test refer to IEC-68-2-27 specification
Vibration test refer to IEC 60068-2-6 specification
Operating temperature is the highest measured temperature of the device case
*The data comes from Longsys’s internal test. The actual performance may vary due to equipment differences.
Product Features
  • 01
    Enhanced Power Loss Protection

  • 02
    End-to-End Data Protection

  • 03
    Firmware Upgrade Activate without Reset

  • 04
    Thermal Throttling

  • 05
    Static and Dynamic Wear Leveling

  • 06
    Secure Boot & Download

  • 07
    Secure Erase

  • 08
    Customization Telemetry and S.M.A.R.T

  • 09
    RAID

Application

  • Server

  • Distributed Storage

  • Cloud Computing

  • Edge Computing

  • Telecommunication Base Station
