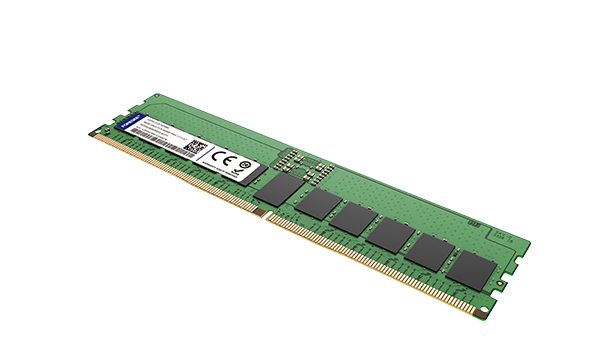

FORESEE AQUILA Series DDR5 RDIMM

Reliability and stability to meet the requirements of data center products
Product Advantages

The DDR5 RDIMMs are based on the JEDEC Raw Card. They have undergone meticulous optimization and simulation to achieve a design with independent intellectual property. In addition, the hardware is made from materials with excellent high-frequency performance, including reliable and temperature-resistant components, and featuring DDR5 chips produced using original mature processes. They support an 80-bit width and ECC error correction and their reliability and stability meet the requirements of data center products.

Consult Now GO
Product Parameter
Product Series PN Capacity Interface Architecture Data Rate CL Value Timing Clock Operating Voltage Gold Fingers (Edge Connectors) Operating Temperature Size
AQUILA DDR5 RES56HAA032G8-M1P2 32GB RDIMM 2RX8 5600Mbps 46 46-45-45 2800MHz 1.1V 30u" 0℃~85°C Extended 95°C 133.35×31.25×5.57mm
AQUILA DDR5 RES56HAB064G8-M1P1 64GB RDIMM 2RX4 5600Mbps 46 46-45-45 2800MHz 1.1V 30u" 0℃~85°C Extended 95°C 133.35×31.25×5.57mm
AQUILA DDR5 RES56HMB096G8-M1P1 96GB RDIMM 2RX4 5600Mbps 46 46-45-45 2800MHz 1.1V 30u" 0℃~85°C Extended 95°C 133.35×31.25×5.57mm
AQUILA DDR5 RES56MBB096G8-M1P1 96GB RDIMM 2RX4 5600Mbps 46 46-45-45 2800MHz 1.1V 30u" 0℃~85°C Extended 95°C 133.35×31.25×5.57mm
Product Features
  • 01
    Independently developed by Longsys, the PCBs enhance signal quality and reduce noise from the power supply.

  • 02
    Components featuring high temperature tolerance help to ensure product reliability and stability.

  • 03
    Sufficient RMT margin ensures data transmission quality.

  • 04
    The product has undergone rigorous testing processes at temperatures of up to 85°C.

  • 05
    The product has passed JEDEC’s complete set of reliabili-ty standard tests.

Application
  • Servers

  • Distributed Storage

  • Cloud Computing

  • Edge Computing

  • Communication Base Stations

  • Work Stations

Compatible Platforms

Number

Platform

01

Intel

02

AMD

The product supports mainstream platforms and only part of it is shown here.
