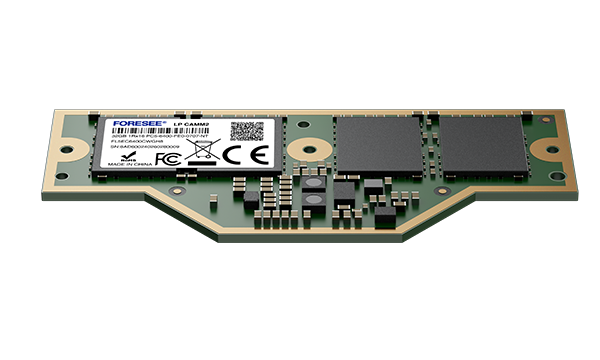

LPCAMM2

Accelerating on-device AI landing and leading the new form-factor of memory
Product Advantages

LPDDR5/5x based, data rate up to 7500Mbps
Large area of contact with PCB to improve heat dissipation performance; Reduce power consumption by more than 50% compared to SODIMMs
More than 60% space savings compared to SODIMMs
Available in capacities from 16GB to 64GB
High-speed connector contacts to reduce damage and ESD
Support upgrades and low maintenance costs

Consult Now GO
Product Parameter
Product Series PN Capacity Interface Bit Width Architecture Data Rate Operating Voltage Operating Temperature Size
LPCAMM2 FF575NC2G89C501 16GB CAMM2 128bit 1Rx16 6400Mbps VIN BULK 4.25V~5.5V 0℃~85℃ 78x23mm
LPCAMM2 FF575NC2G8AC501 32GB CAMM2 128bit 1Rx16 7500Mbps VIN BULK 4.25V~5.5V 0℃~85℃ 78x23mm
*The data comes from Longsys’s internal test. The actual performance may vary due to equipment differences.
Product Features
  • 01
    Over 60% space savings, 70% performance improvement and nearly 50% power reduction compared to SODIMMs

  • 02
    Superior scalability and maintainability compared to on board LPDDR

Application

  • AI Terminals

  • HPC

  • Ultra-thin Notebook

  • Commercial Equipments
