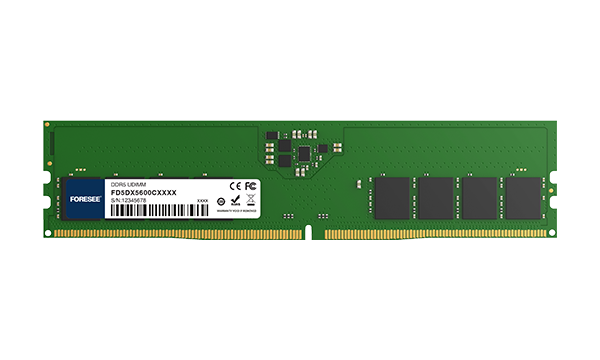

Commercial DDR5 DIMM

Achieved a leapfrog improvement, with stable and outstanding performance

Product Advantages

The gold-plating process of edge connectors follows the industry's mainstream standards.
The product complies with commercial-grade product standards, meets different requirements of industry users, and features high stability, an ultra-low failure rate, and reliable product quality.
They come with a complete retention cycle for storing core materials procured by clients, introduction and certification of the latest technologies, and a Last-Buy mechanism for up to one year.

Consult Now GO

back

Product Parameter

Product Series	PN	Capacity	Interface	Architecture	Data Rate	CL Value	Timing	Clock	Operating Voltage	Gold Fingers (Edge Connectors)	Operating Temperature	Size
DDR5	FD5DU5600CWGHA	32GB	UDIMM	2Rx8	5600Mbps	46	46-45-45-90	2800Mhz	1.1V	30u"	0 - 85℃	133.35 x 31.25 x 2.47mm
DDR5	FD5DU5600CQGHA	16GB	UDIMM	1Rx8	5600Mbps	46	46-45-45-90	2800Mhz	1.1V	30u"	0 - 85℃	133.35 x 31.25 x 2.47mm
DDR5	FD5DU5600C8GHA	8GB	UDIMM	1Rx16	5600Mbps	46	46-45-45-90	2800Mhz	1.1V	30u"	0 - 85℃	133.35 x 31.25 x 2.47mm
DDR5	FD5DS5600CWGHA	32GB	UDIMM	2Rx8	5600Mbps	46	46-45-45-90	2800Mhz	1.1V	30u"	0 - 85℃	133.35 x 31.25 x 2.47mm
DDR5	FD5DS5600CQGHA	16GB	SODIMM	1Rx8	5600Mbps	46	46-45-45-90	2800Mhz	1.1V	30u"	0 - 85℃	69.6 x 30 x 2.4mm
DDR5	FD5DS5600C8GHA	8GB	SODIMM	1Rx16	5600Mbps	46	46-45-45-90	2800Mhz	1.1V	30u"	0 - 85℃	69.6 x 30 x 2.4mm
DDR5	FD5DS5600CQGXA	16GB	SODIMM	1Rx8	5600Mbps	46	46-45-45-90	2800Mhz	1.1V	30u"	0 - 85℃	69.6 x 30 x 2.4mm
DDR5	FD5DU5600CQGZL	16GB	UDIMM	1Rx8	5600Mbps	46	46-45-45-90	2800Mhz	1.1V	30u"	0 - 85℃	133.35 x 31.25 x 2.47mm
DDR5	FD5DS5600CQGZL	16GB	SODIMM	1Rx8	5600Mbps	46	46-45-45-90	2800Mhz	1.1V	30u"	0 - 85℃	69.6 x 30 x 2.4mm
