FORESEE LPDDR Storage | Better Performance | Longsys

FORESEE LPDDR storage by Longsys features high performance and low power consumption that is ideal for portable devices such as smart phone and tablet.

LPDDR

Low-power memory product that is widely used for portable devices

Product Advantages

The product features high performance and low power consumption.

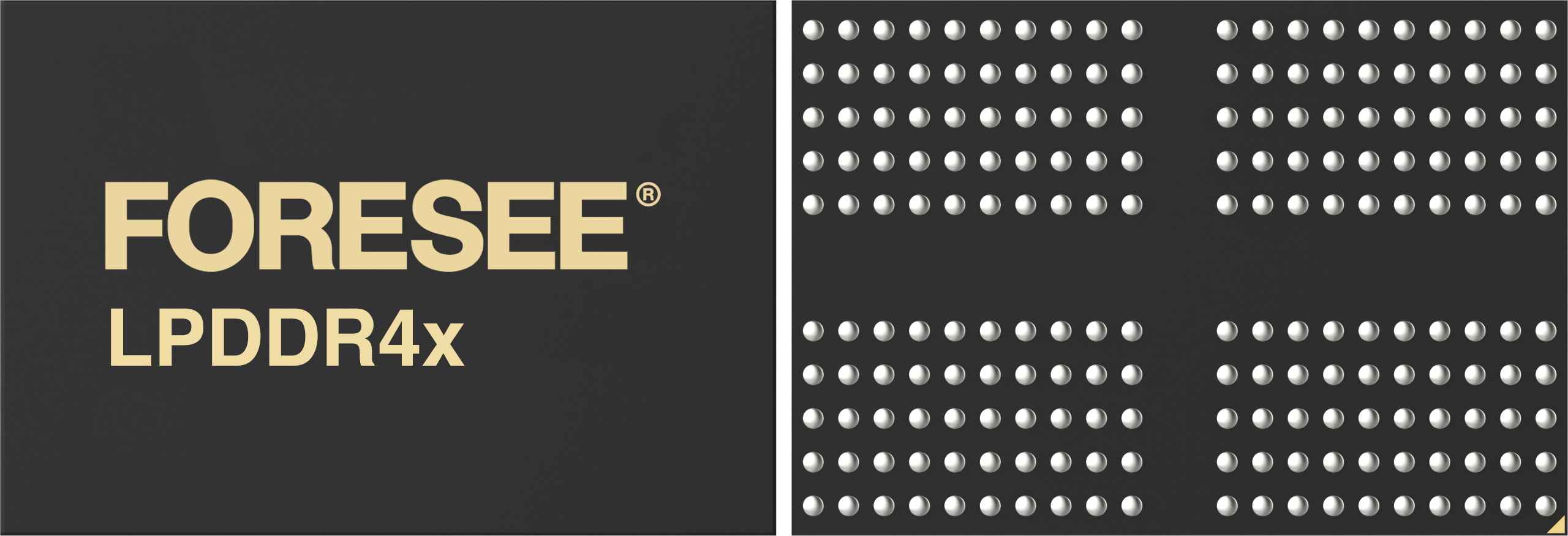

The latest LPDDR4x product has a capacity of up to 64Gb with 50% performance improvement over LPDDR3.
LPDDR5 data rate up to 6400Mbps, higher performance LPDDR5X is also under development (up to 8533Mbps rate), to meet the higher memory requirements of the terminal applications.

Consult Now GO

back

Product Parameter

Product Series	Capacity	Package	Operating Temperature	Protocal/Interface	Bit Width	Operating Voltage	Data Rate	Size
LPDDR	16Gbit	200Ball	-25℃~85℃	LPDDR4/4X	x32	1.1V/0.6V	3733Mbps	1014.51.0mm
LPDDR	24Gbit	200Ball	-25℃~85℃	LPDDR4/4X	x32	1.1V/0.6V	3733Mbps	1014.51.0mm
LPDDR	32Gbit	200Ball	-25℃~85℃	LPDDR4/4X	x32	1.1V/0.6V	3733Mbps	1014.51.0mm
LPDDR	48Gbit	200Ball	-25℃~85℃	LPDDR4/4X	x32	1.1V/0.6V	3733Mbps	1014.51.0mm
LPDDR	64Gbit	200Ball	-25℃~85℃	LPDDR4/4X	x32	1.1V/0.6V	4266Mbps	1014.51.0mm
LPDDR	64Gbit	200Ball	-25℃~85℃	LPDDR4X	x32	0.6V	4266Mbps	1014.51.0mm
LPDDR	32Gbit	315Ball	-25℃~85℃	LPDDR5	x32	0.5V/0.3V	6400Mbps	12.4151.0mm
LPDDR	48Gbit	315Ball	-25℃~85℃	LPDDR5	x32	0.5V/0.3V	6400Mbps	12.4151.1mm
LPDDR	64Gbit	315Ball	-25℃~85℃	LPDDR5	x32	0.5V/0.3V	6400Mbps	12.4151.1mm

*The data comes from Longsys’s internal test. The actual performance may vary due to equipment differences.

Product Features

01
Suitable for smartphones and other handheld devices

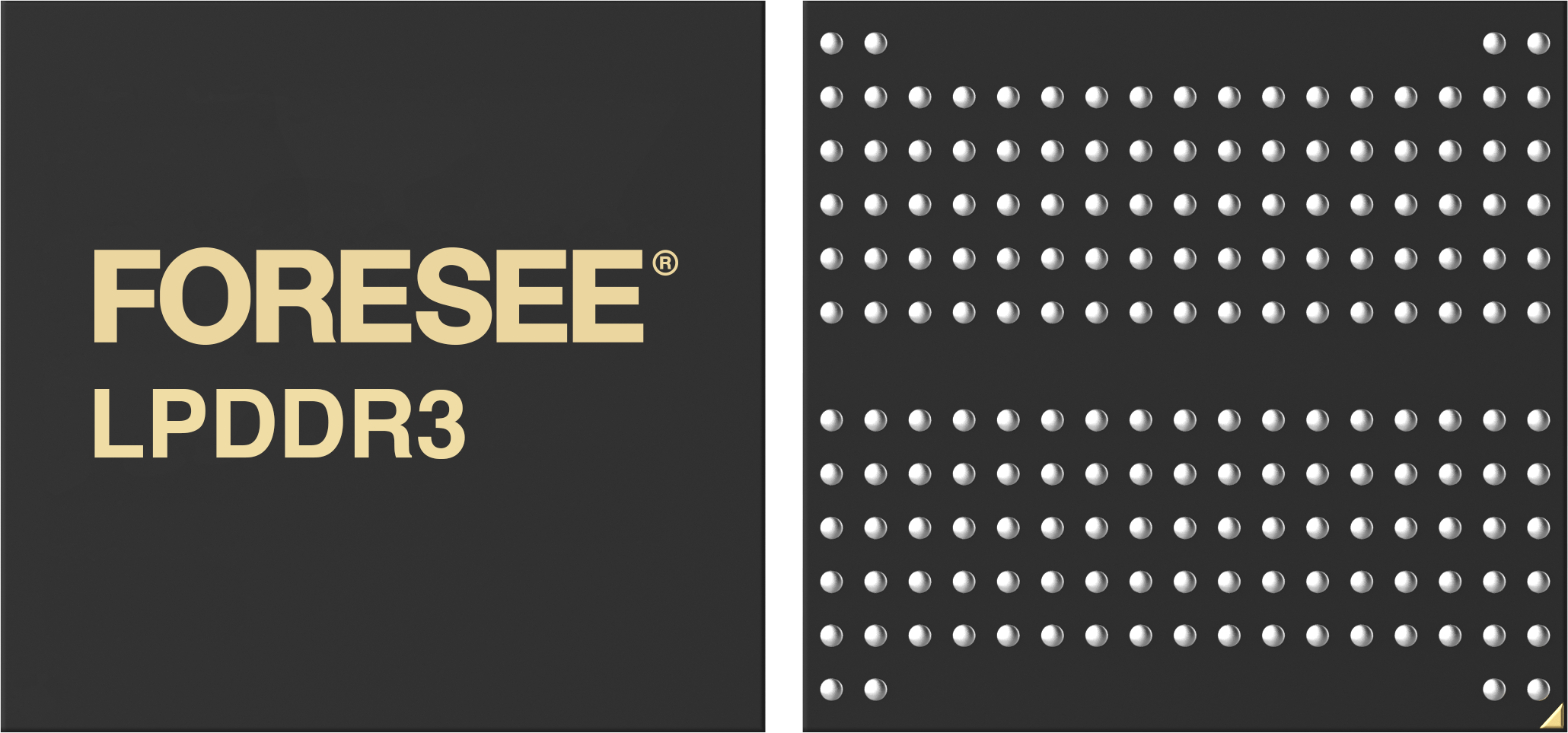

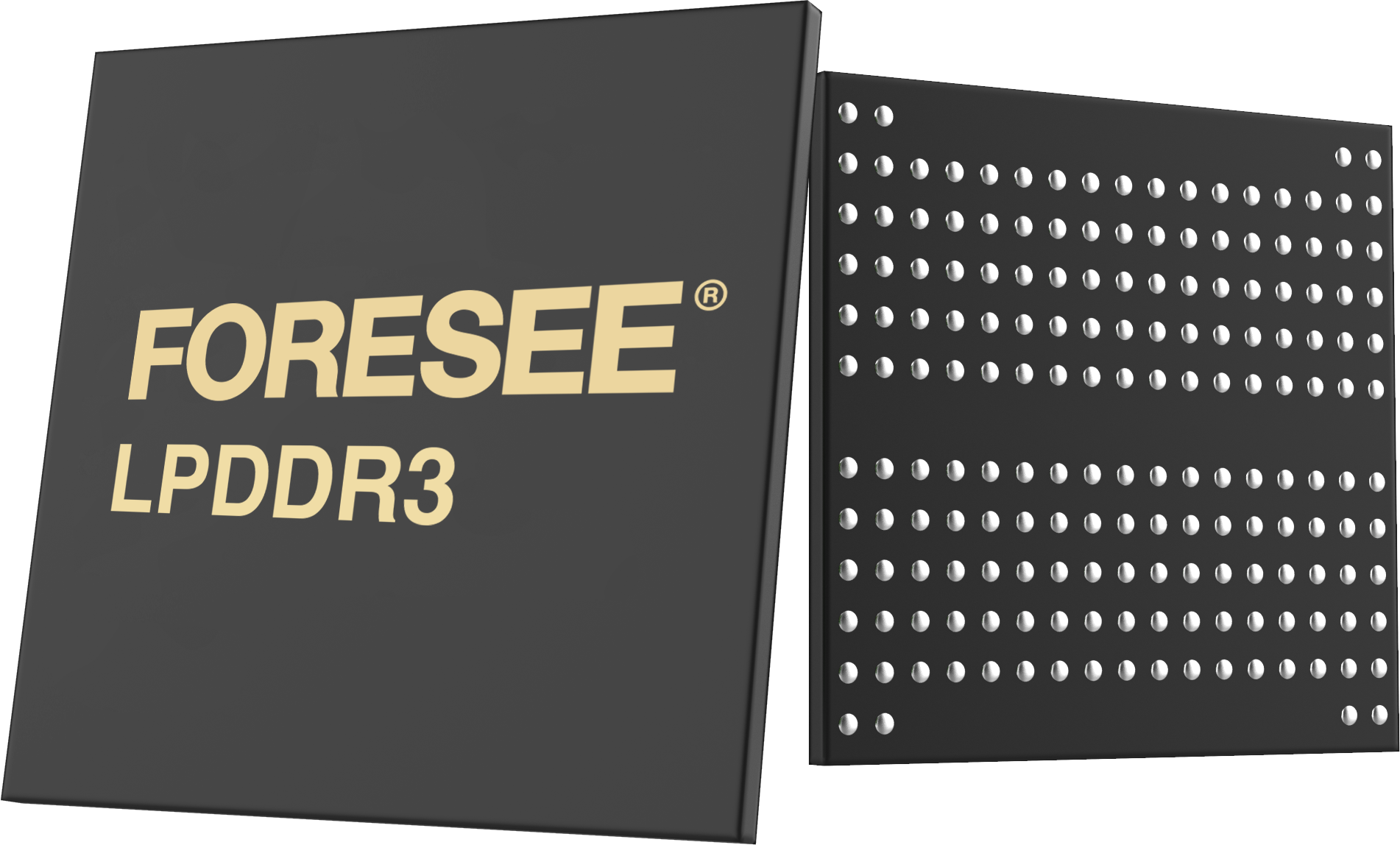

The product types include LPDDR3, LPDDR4, and LPDDR4x. The frequency of LPDDR3 can reach 667MHz/800MHz, and the frequency of LPDDR4/4x can reach 1200MHz/1600MHz. They are widely used in smartphones, tablets, and other terminals.
02
High performance, low power consumption, and stable quality

The product complies with JEDEC standards and features low power consumption and small size. Longsys utilizes the advanced package process of an international well-known package factory and in-house test technologies to ensure stable and reliable product quality.
