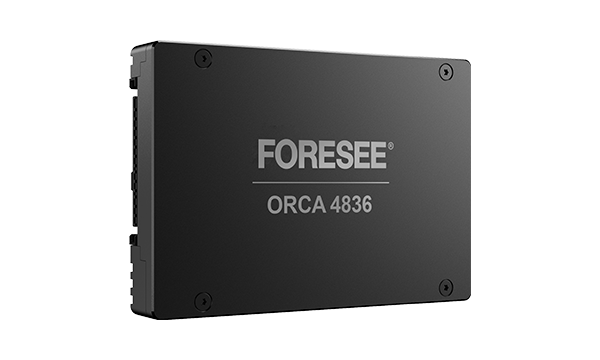

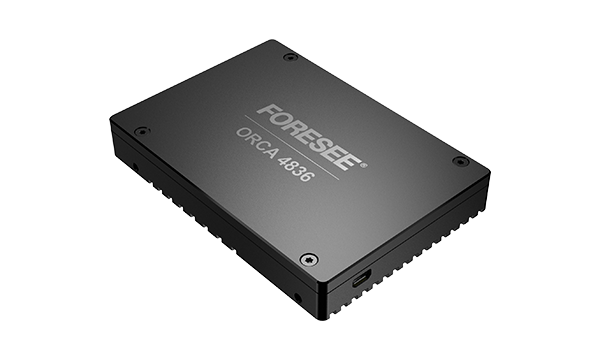

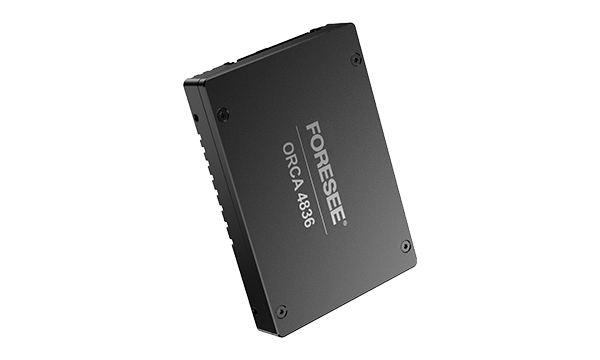

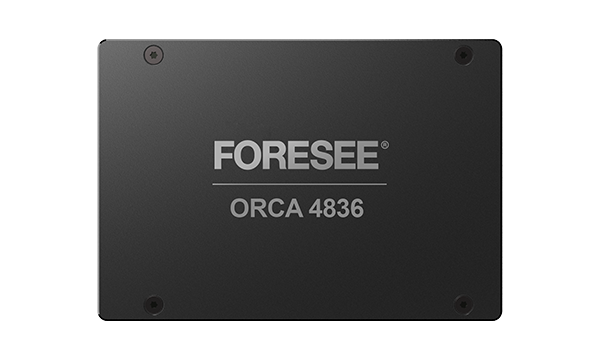

FORESEE ORCA 4836 Series Enterprise NVMe SSD

FORESEE is committed to creating enterprise-class SSD series ORCA 4836 SSD, PCle Gen4 U.2 SSD supporting NVMe1.4,providing mainstream solutions with capacity up to 7.68TB, and Random Read up to 1000K* IOPS.
Product Advantages

Outstanding Performance:
ORCA 4836 series supports PCle 4.0 x 4 interfaces and carries built-in performance optimization and thus guarantees highlevel of QoS and l0 consistency. lt delivers reach 6.8GB/s* Sequential Read throughput and 1000K* Random Read lOPSThis ensures high performance and steady data service in wide-range of enterprise applications.
Reliable Data Storage:
Through rigorous design, imulation and verification, ORCA 4836 meets the reliability standard of 2 miion hours of MTBFit supports enhanced PLP, RAlD, and security features. Specifically designed for the enterprise usage, focusing on dataprotection for a variety of applications.
Energy-efficiency:
ORCA 4836 provides the abov-mentioned performance with the power envelope of 14W. and offers power consumptiontuning on per-Wat basis ( ranging 6-14W). This flexibility allows enterprise users to adjust power consumption based onthe needs of specific applications.

Consult Now GO
Product Parameter
Series PN NAND Flash Capacity Type Dimension Interface 128KB Sequential Read Speed* 128KB Sequential Write Speed* 4KB Random Read Speed(IOPS)* 4KB Random Write Speed(IOPS)* Endurance Warranty Period Uncorrectable Bit Error Rate(UBER) Mean Time Between Failure (MTBF) Power Consumption Operating Temperature
ORCA 4836 PRO RSZE4836B-1920 128 layer 3D eTLC 1.92TB 2.5" U.2 100x70x15 mm PCIe Gen 4*4 6800MB/s 2600MB/s 740K IOPS 130K IOPS 1DWPD 5 years ≤1 sector per 10^17 bits read 2 million hours Active:<=14 W
Idle:<=5W
0~70℃
ORCA 4836 PRO RSZE4836B-3840 128 layer 3D eTLC 3.84TB 2.5" U.2 100x70x15 mm PCIe Gen 4*4 6800MB/s 4600MB/s 1000K IOPS 210K IOPS 1DWPD 5 years ≤1 sector per 10^17 bits read 2 million hours Active:<=14 W
Idle:<=5W
0~70℃
ORCA 4836 PRO RSZE4836B-7680 128 layer 3D eTLC 7.68TB 2.5" U.2 100x70x15 mm PCIe Gen 4*4 6400MB/s 4600MB/s 1000K IOPS 220K IOPS 1DWPD 5 years ≤1 sector per 10^17 bits read 2 million hours Active:<=14 W
Idle:<=5W
0~70℃
ORCA 4836 MAX RSZE4836B-1600 128 layer 3D eTLC 1.6TB 2.5" U.2 100x70x15 mm PCIe Gen 4*4 6800MB/s 2600MB/s 740K IOPS 260K IOPS 2.6DWPD 5 years ≤1 sector per 10^17 bits read 2 million hours Active:<=14 W
Idle:<=5W
0~70℃
ORCA 4836 MAX RSZE4836B-3200 128 layer 3D eTLC 3.2TB 2.5" U.2 100x70x15 mm PCIe Gen 4*4 6800MB/s 4600MB/s 1000K IOPS 380K IOPS 3DWPD 5 years ≤1 sector per 10^17 bits read 2 million hours Active:<=14 W
Idle:<=5W
0~70℃
ORCA 4836 MAX RSZE4836B-6400 128 layer 3D eTLC 6.4TB 2.5" U.2 100x70x15 mm PCIe Gen 4*4 6400MB/s 4600MB/s 1000K IOPS 380K IOPS 3DWPD 5 years ≤1 sector per 10^17 bits read 2 million hours Active:<=14 W
Idle:<=5W
0~70℃
Spec Compliance:NVM Express Base Specification1.4;PCI Express Base Specification Revision 4.0
Managebility:NVM Express Management Interface Specification1.1
SNIA SSS-PTS-E Test Specification is used as a reference in the performance tests;
The maximum device case surface temperature measured
*The data comes from Longsys’s internal test. The actual performance may vary due to equipment differences.
Product Features
  • 01
    NVMe MI 1.1

  • 02
    Secure Boot & Download

  • 03
    Enhanced Power Loss Protection

  • 04
    Multiple Namespace

  • 05
    Sanitize

  • 06
    Firmware Upgrade Activate without Reset

  • 07
    End-to-End Data Protection

  • 08
    Thermal throttling

  • 09
    Flexible Power Adjustment

  • 010
    RAID

  • 011
    Telemetry

Application
  • Server

  • Distributed storage

  • Cloud computing

  • Edge Computing

  • Workstation
