Memory Card

Divided into commercial EPLUS series and industrial series

Product Advantages

Using Longsys's self-developed firmware, with the ability to develop firmware；
Having obtained a number of core technology patents；
EPLUS V10 microSD(32GB) and Industrial microSD (32GB) have been approved as up to standard for use on Raspberry Pi computers；
Having obtained a number of core technology patents；
Widely used in security monitoring, industrial control, automotive electronics, medical and other fields.

Consult Now GO

back

Product Parameter

Product Series	PN	NAND Flash	Capacity	Interface	Speed Grade	Transmission Speed	Durability	Operating Temperature	Storage Temperature	Thermal Shock
EPLUS V10 microSD	FC5NC1XXXG-E	TLC	8GB/16GB/32GB	UHS-I	C10 U1 V10 A1	Up to 100MB/s	/	-25℃~85℃	-40℃~85℃	/
EPLUS V30 microSD	FC5NE2XXXG-E	TLC	32GB/64GB 128GB/512GB	UHS-I	C10 U3 V30 A2	Up to 100MB/s	/	-25℃~85℃	-40℃~85℃	/
EPLUS V30 SD	FC8NE0XXXG-E	TLC	16GB/32GB/64GB 128GB/512GB	UHS-I	C10 U3 V30	Up to 100MB/s	/	-25℃~85℃	-40℃~85℃	/
Industrial microSD	FC5MXXXXXG-I	Industrial TLC	8GB/16GB/32GB/64GB 128GB/256GB/512GB	UHS-I	C10 U1 V10 A1/A2 C10 U3 V30 A1/A2	Up to 100MB/s	3000 P/E	-25℃~85℃	-40℃~85℃	-25℃~85℃
Industrial SD	FC8MXXXXXG-I	Industrial TLC	8GB/16GB/32GB/64GB 128GB/256GB/512GB	UHS-I	C10 U1 V10 C10 U3 V30	Up to 100MB/s	3000 P/E	-25℃~85℃	-40℃~85℃	-25℃~85℃
Industrial WT microSD	FC5RXXXXXG-R	MLC/Industrial TLC	8GB/16GB/32GB/64GB 128GB/256GB	UHS-I	C10 U1 V10 A1/A2 C10 U3 V30 A1/A2	Up to 100MB/s	5000/3000 P/E	-40℃~85℃	-40℃~85℃	-40℃~85℃
Industrial WT SD	FC8RXXXXXG-R	MLC/Industrial TLC	8GB/16GB/32GB/64GB 128GB/256GB	UHS-I	C10 U1 V10 C10 U3 V30	Up to 100MB/s	5000/3000 P/E	-40℃~85℃	-40℃~85℃	-40℃~85℃
Industrial pSLC microSD	FC5SE2XXXG-S	pSLC	8GB/16GB/32GB 64GB/128GB	UHS-I	C10 U3 V30 A2	Up to 100MB/s	30000 P/E	-40℃~85℃	-40℃~85℃	-40℃~85℃

Supports Power Failure Protection and S.M.A.R.T Function.
*The data comes from Longsys’s internal test. The actual performance may vary due to equipment differences.

Product Features

01

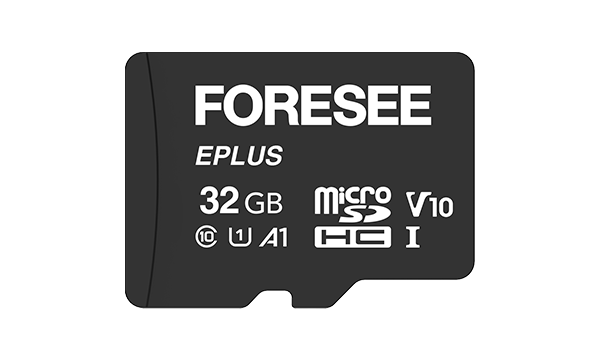

EPLUS V10 microSD

For electronic education, story machine, wearable devices and other consumer electronics;Support fast read and write response, to solve the problem of audio interruption and distortion;Low power firmware architecture to solve the battery life problems of portable devices.
02

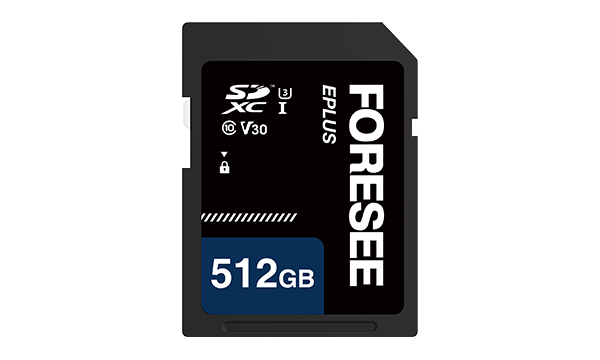

EPLUS V30 SD/microSD

For consumer security monitoring, dashcam, hunting camera, sports camera and other consumer electronic fields;Supports 24 hours of uninterrupted video input to solve the problem that security monitoring cannot cycle overwrite, stop recording, and frame loss;V30 video speed level, support FHD, 4K, 8K HD recording.
03

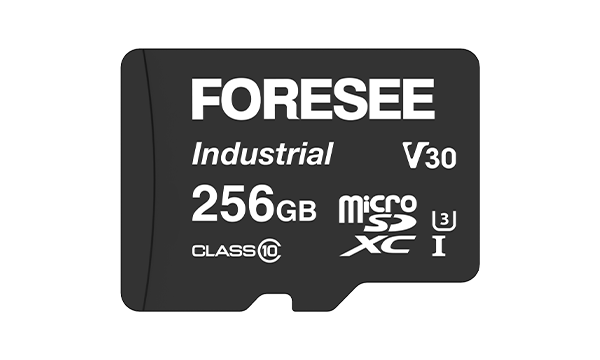

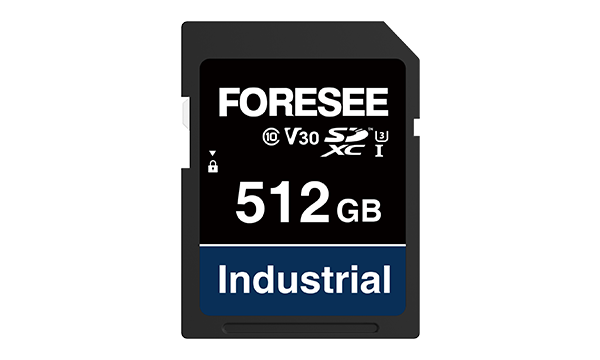

Industrial SD/microSD

For industrial security surveillance camera, vehicle surveillance camera and other industrial applications;High durability and reliability;Supports 24 - hour uninterrupted video input and multi-channel surveillance video input;Intelligent GC algorithm optimization, to maintain long-term data entry stability.
04

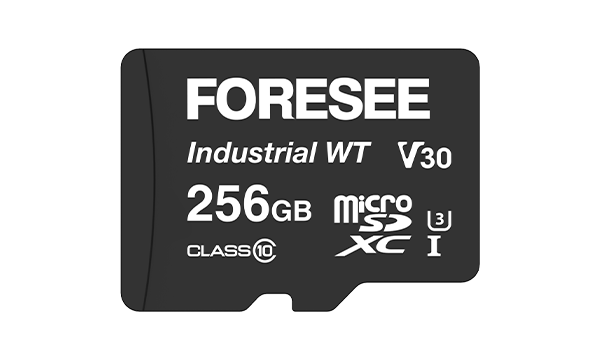

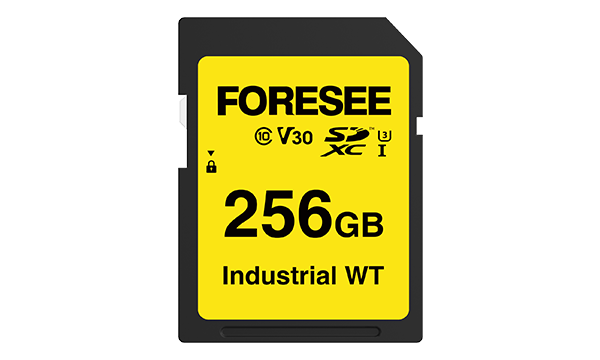

Industrial WT SD/microSD

For automotive electronics, industrial control and other wide temperature, high reliability requirements of the industrial scale application market;Strict production process, comprehensively improve product quality and reliability;High reliability, stable operation in harsh environment.
05

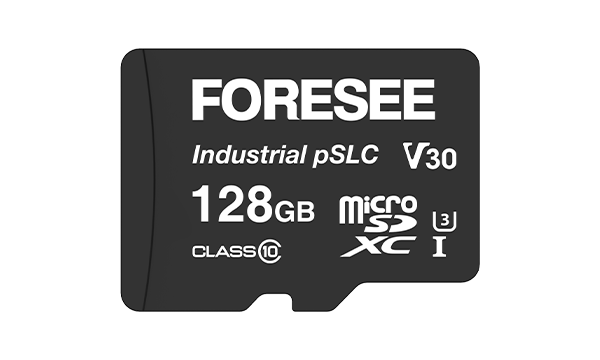

Industrial pSLC microSD

For the application of high quality standards;Using NAND Flash pSLC Mode to comprehensively improve the performance and durability;After high and low temperature impact screening out, in order to comprehensively improve product quality and reliability.
