Commercial DDR5 DIMM

Achieved a leapfrog improvement, with stable and outstanding performance
Product Advantages

The gold-plating process of edge connectors follows the industry's mainstream standards.
The product complies with commercial-grade product standards, meets different requirements of industry users, and features high stability, an ultra-low failure rate, and reliable product quality.
They come with a complete retention cycle for storing core materials procured by clients, introduction and certification of the latest technologies, and a Last-Buy mechanism for up to one year.

Consult Now GO
Product Parameter
Product Series Design Reference Interface Capacity PCB Design Architecture Rate CL Value Timing Clock Operating Voltage Activation Voltage Operating Temperature Gold Fingers (Edge Connectors) Size
DDR5 SO-DIMM JEDEC R/C A 0.70 262PIN
SO-DIMM
16GB
32GB
8L 2 Channel×32bit 4800 Mbps 40(Default) 40-40-40 40-40-40 1.1V 1.8V 0°C~ 70°C 30u” 69.6*30 mm

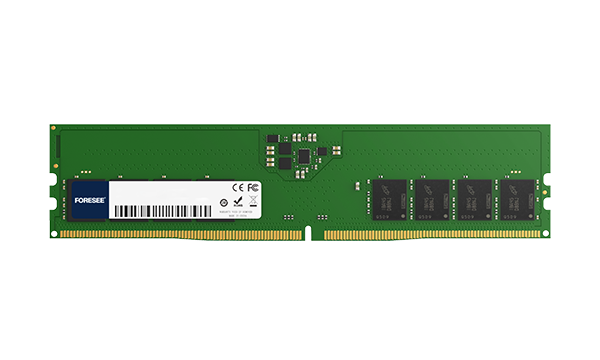

DDR5 U-DIMM JEDEC R/C A 0.70 288PIN
U-DIMM
16GB
32GB
8L 2 Channel×32bit 4800 Mbps 40(Default) 40-40-40 40-40-40 1.1V 1.8V 0°C~ 70°C 30u” 133.35*31.25 mm
Product Features
  • 01
    Error correction mode

    Support On-die-ECC

  • 02
    Prefetch mode

    Support 16n Prefetch mode(BL16)

  • 03
    End-to-end reception mode

    Expansion to add CA/CS type signal ODT

  • 04
    Balanced mode

    Support DFE technology (enhance signal integrity)

  • 05
    Power management mode

    Increase PMIC integration function

  • 06
    Refresh mode

    Support SAME-BANK Refresh technology

  • 07
    Channel mode

    Built-in independent dual channel mechanism

  • 08
    Array layering mode

    Support 8 BGs, a total of 32 Banks

Application
  • Commercial display device

  • All-in-one machine

  • Desktop

  • Intelligent government terminal

  • Edge computing

  • Game systems (PC)

  • Government office system
