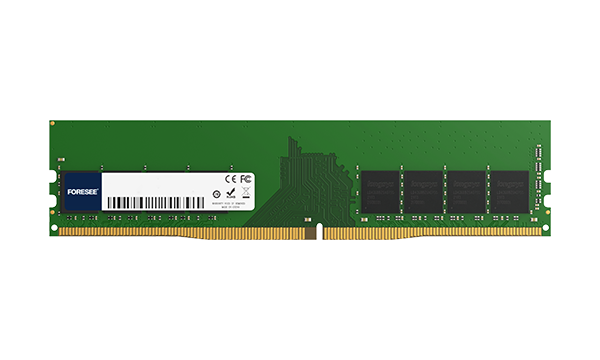

Commercial DDR4 DIMM

Strategic DRAM particles from original manufacturers, covering mainstream product specifications with reliable quality
Product Advantages

The gold-plating process of edge connectors follows the industry's mainstream standards.
The product complies with commercial-grade product standards, meets different requirements of industry users, and features high stability, an ultra-low failure rate, and reliable product quality.
They come with a complete retention cycle for storing core materials procured by clients, introduction and certification of the latest technologies, and a Last-Buy mechanism for up to one year.

Consult Now GO
Product Parameter
Product Series Design Reference Interface Capacity PCB Design Architecture Rate CL Value Timing Clock Operating Voltage Activation Voltage Operating Temperature Gold Fingers (Edge Connectors) Size
DDR4 SO-DIMM JEDEC DDR4 260PIN
SO-DIMM
4GB
8GB
16GB
32GB
8L
10L
1Rank 64bit
2Rank 64bit
2666Mbps
3200Mbps
19(Default)
22(Default)
19-19-19
22-22-22
0.75ns
0.625ns
1.2V 2.5V 0°C~70°C 30u” 69.6*30 mm
DDR4 U-DIMM JEDEC DDR4 288PIN
U-DIMM
8GB
16GB
32GB
8L
10L
1Rank 64bit
2Rank 64bit
2666Mbps
3200Mbps
19(Default)
22(Default)
19-19-19
22-22-22
0.75ns
0.625ns
1.2V 2.5V 0°C~70°C 30u” 133.35*31.25 mm
Product Features
  • 01
    Synchronous transfer to CPU

    Transmissions and operations are synchronized to the CPU. Perfect hard core interaction mode ensures smooth operation scenarios.

  • 02
    Unlimited write/erase cycles

    Capacitive storage cell structure and dynamic charging and discharging refresh mode eliminate decaying write and erase characteristics.

  • 03
    Random read/write

    The CPU can perform concurrent read/write operations to the memory regardliess of the data operation time or data storage location.

  • 04
    Standard compatibility

    The product supports all DDR4 standard interfaces and application upon adaption without needing hardware commissioning.

Application
  • Commercial display device

  • All-in-one machine

  • Desktop

  • Intelligent government terminal

  • Edge computing

  • Game systems (PC)

  • Government office system
