FORESEE DDR3L | Over 40 Production Tested | Longsys

FORESEE DDR3L is designed to satisfy the data caching demands of network communication and smart devices. DDR3L has been tested under 40+ production tests.

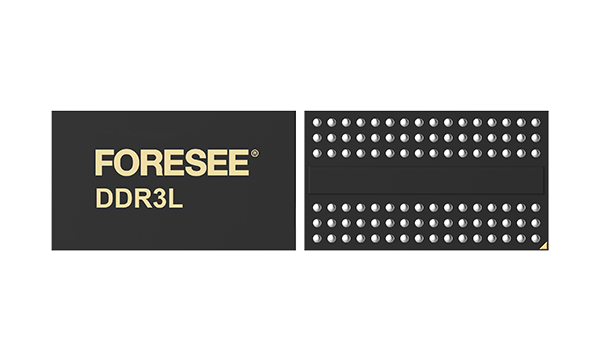

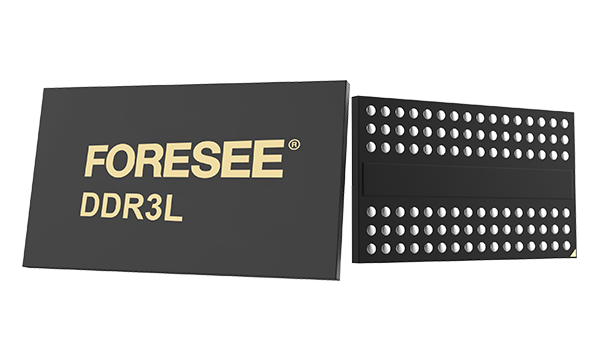

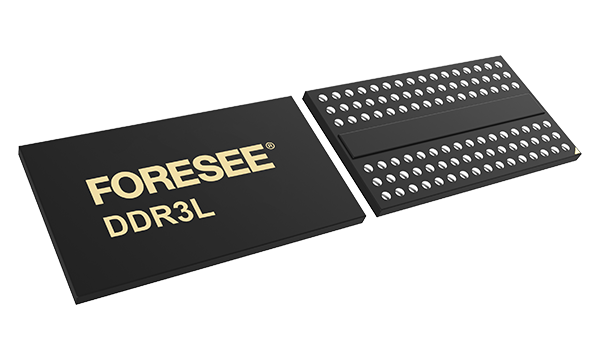

DDR3L

40+ production tests, meeting various data caching demands

Product Advantages

The product has undergone 40+ production tests, including the aging test, high/low temperature tests, and pressure test, ensuring reliable quality.
The product features a 2xnm process and rate of up to 2133Mbps.
The product meets the data caching demands of network communication, consumer electronics, and smart devices.

Consult Now GO

back

Product Parameter

Product Series	Capacity	Package	Data Rate	Operating Temperature	Voltage	Bit Width	Size	P/N
DDR3 SDRAM	2Gbit	BGA96	1866Mbps	0~95℃	1.35V(1.283~1.45V) 1.5V(1.425~1.575V)	x16	7.5*13.5mm	F60C1A0002-M6AR
DDR3 SDRAM	2Gbit	BGA96	2133Mbps	0~95℃	1.35V(1.283~1.45V) 1.5V(1.425~1.575V)	x16	7.5*13.5mm	F60C1A0002-M6KR
DDR3 SDRAM	2Gbit	BGA96	1866Mbps	-40~95℃	1.35V(1.283~1.45V) 1.5V(1.425~1.575V)	x16	7.5*13.5mm	F60C1A0002-M69W
DDR3 SDRAM	4Gbit	BGA96	1866Mbps	0~95℃	1.35V(1.283~1.45V) 1.5V(1.425~1.575V)	x16	7.5*13.5mm	F60C1A0004-M79R
DDR3 SDRAM	4Gbit	BGA96	2133Mbps	0~95℃	1.35V(1.283~1.45V) 1.5V(1.425~1.575V)	x16	7.5*13.5mm	F60C1A0004-M7KR
DDR3 SDRAM	4Gbit	BGA96	1866Mbps	-40~95℃	1.35V(1.283~1.45V) 1.5V(1.425~1.575V)	x16	7.5*13.5mm	F60C1A0004-M79W

Product Features

01
The DDR3L supports 1.35V and 1.5V operating voltages.
02
The DDR3L frequency can be 1866Mbps or 2133Mbps.
03
The temperature ranges include 0°C to 95°C and –40°C to +95°C, providing more choices for customers.
04
The capacity from 2Gbit to 4Gbit can meet various capacity requirements.
