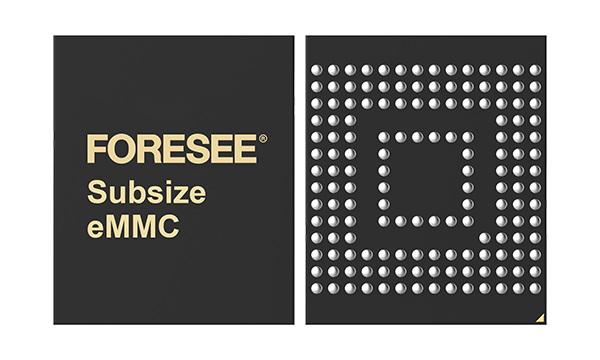

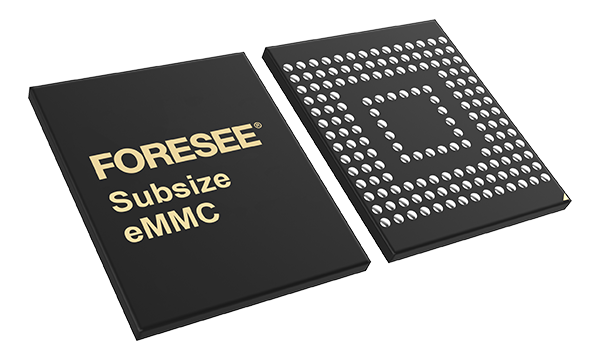

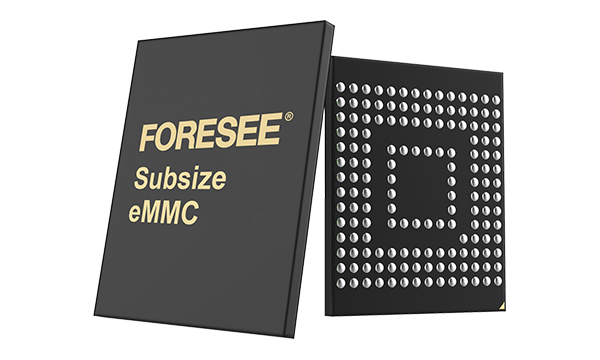

Subsize eMMC
Subsize eMMC

Subsize eMMC

Innovative eMMC with a smaller size and lower power consumption
Product Advantages

The product is compact and requires less PCB space.
The product complies with JEDEC pin standards.

Consult Now GO
Product Parameter
Product Series Capacity Protocol eMMC Interface mode Package Size Operating Temperature Operating Voltage
Subsize eMMC 4GB eMMC 5.1 HS400 BGA153 9*7.5*0.8 mm / 9*10*0.8mm / 10*11*0.8 mm -25℃~85℃ VCCQ: 1.8V/3.3V ;VCC: 3.3V.
Subsize eMMC 8GB eMMC 5.1 HS400 BGA153 9*7.5*0.8 mm / 9*10*0.8mm / 10*11*0.8 mm -25℃~85℃ VCCQ: 1.8V/3.3V ;VCC: 3.3V.
Subsize eMMC 32GB eMMC 5.1 HS400 BGA153 9*7.5*0.8 mm / 9*10*0.8mm / 10*11*0.8 mm -25℃~85℃ VCCQ: 1.8V/3.3V ;VCC: 3.3V.
Product Features
  • 01
    The product is downward compatible with standard industry protocols and is small and thin.

  • 02
    When compared with the eMMC with a standard size, the FORESEE subsize eMMC can save 40% to 55% PCB space.

  • 03
    Based on insights to Flash and application scenarios, the FORESEE subsize eMMC further reduces power consumption.

  • 04
    The product is suitable for application scenarios with limited space, such as wearable devices.

Application
  • Smart watch

  • Smart band

  • Smart earphone

  • Industrial IPC
