FORESEE LPDDR Storage | Better Performance | Longsys

FORESEE LPDDR storage by Longsys features high performance and low power consumption that is ideal for portable devices such as smart phone and tablet.

LPDDR

Low-power memory product that is widely used for portable devices
Product Advantages

The product features high performance and low power consumption.

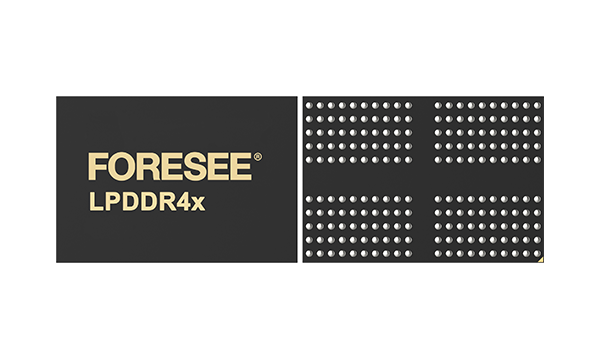

The latest LPDDR4x product has a capacity of up to 64Gb with 50% performance improvement over LPDDR3.

Consult Now GO
Product Parameter
Product Series Capacity Package Operating Temperature Protocal/Interface Bit Width Operating Voltage Data Rate Size
LPDDR 16Gbit 200Ball -25℃~85℃ LPDDR4/4X x32 1.1V/0.6V 3733Mbps 10*14.5*1.0mm
LPDDR 16Gbit 200Ball -25℃~85℃ LPDDR4/4X x32 1.1V/0.6V 3733Mbps 10*14.5*1.0mm
LPDDR 24Gbit 200Ball -25℃~85℃ LPDDR4/4X x32 1.1V/0.6V 3733Mbps 10*14.5*1.0mm
LPDDR 24Gbit 200Ball -25℃~85℃ LPDDR4/4X x32 1.1V/0.6V 3733Mbps 10*14.5*1.0mm
LPDDR 32Gbit 200Ball -25℃~85℃ LPDDR4/4X x32 1.1V/0.6V 3733Mbps 10*14.5*1.0mm
LPDDR 32Gbit 200Ball -25℃~85℃ LPDDR4/4X x32 1.1V/0.6V 3733Mbps 10*14.5*1.0mm
LPDDR 48Gbit 200Ball -25℃~85℃ LPDDR4/4X x32 1.1V/0.6V 3733Mbps 10*14.5*1.0mm
LPDDR 64Gbit 200Ball -25℃~85℃ LPDDR4/4X x32 1.1V/0.6V 4266Mbps 10*14.5*1.0mm
LPDDR 64Gbit 200Ball -25℃~85℃ LPDDR4X x32 0.6V 4266Mbps 10*14.5*1.0mm

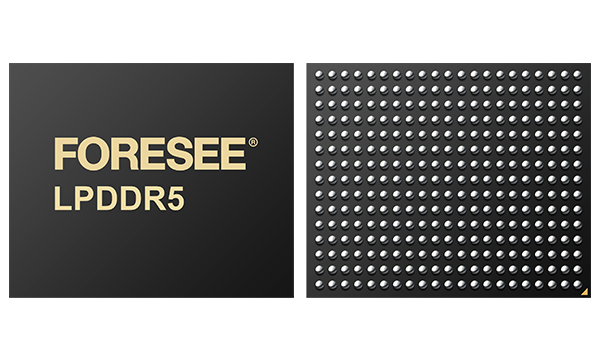

LPDDR 32Gbit 315Ball -25℃~85℃ LPDDR5 x32 0.5V/0.3V 5500Mbps 12.4*15*1.0mm
LPDDR 48Gbit 315Ball -25℃~85℃ LPDDR5 x32 0.5V/0.3V 5500Mbps 12.4*15*1.1mm
LPDDR 64Gbit 315Ball -25℃~85℃ LPDDR5 x32 0.5V/0.3V 5500Mbps 12.4*15*1.1mm
Product Features
  • 01
    Suitable for smartphones and other handheld devices

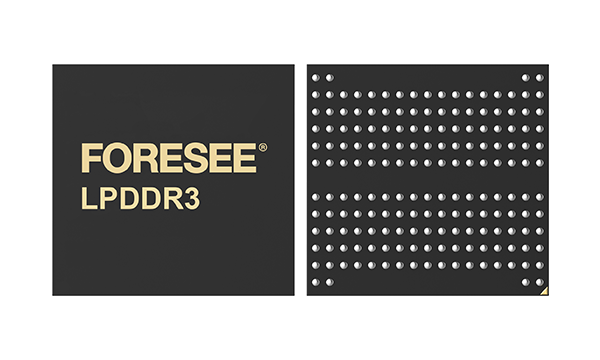

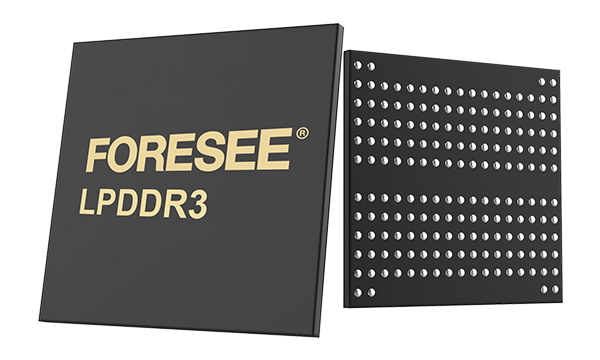

    The product types include LPDDR3, LPDDR4, and LPDDR4x. The frequency of LPDDR3 can reach 667MHz/800MHz, and the frequency of LPDDR4/4x can reach 1200MHz/1600MHz. They are widely used in smartphones, tablets, and other terminals.

  • 02
    High performance, low power consumption, and stable quality

    The product complies with JEDEC standards and features low power consumption and small size. Longsys utilizes the advanced package process of an international well-known package factory and in-house test technologies to ensure stable and reliable product quality.

Application
  • Smartphone

  • Tablet

  • Teaching tablet

  • Smart TV

Compatible Platforms

Number

Platform

01

MediaTek

02

Qualcomm

03

Allwinner

04

Rockchip

The product supports mainstream platforms and only part of it is shown here.
