eMCP

Compound product that combines eMMC and LPDDR, ensuring compact and lightweight smart devices
Product Advantages

The product simplifies the system's PCB design and reduces occupied PCB space.
Higher performance, larger capacity, and lower power consumption can be achieved in a small package.

Consult Now GO
Product Parameter
Product Series Protocol Capacity DRAM Frequency Number of Balls Size Operating Temperature Operating Voltage

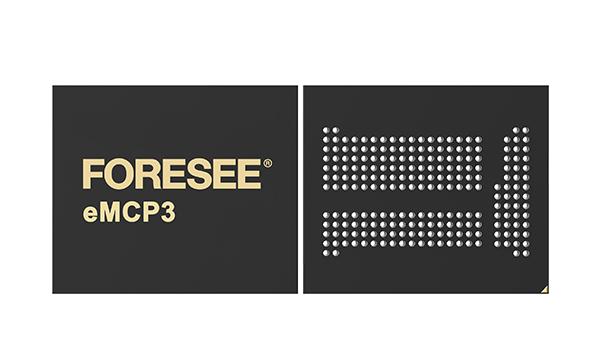

eMCP3 eMMC 5.1 + LPDDR3 16GB+8Gb 667MHz / 800MHz 221ball 11.5*13*1.0 mm -25℃~85℃ DRAM： VDDQ=1.2V;
eMMC: VCCQ: 1.8V/3.3V ; VCC: 3.3V.
eMCP3 eMMC 5.1 + LPDDR3 32GB+8Gb 667MHz / 800MHz 221ball 11.5*13*1.0 mm -25℃~85℃ DRAM： VDDQ=1.2V;
eMMC: VCCQ: 1.8V/3.3V ; VCC: 3.3V.

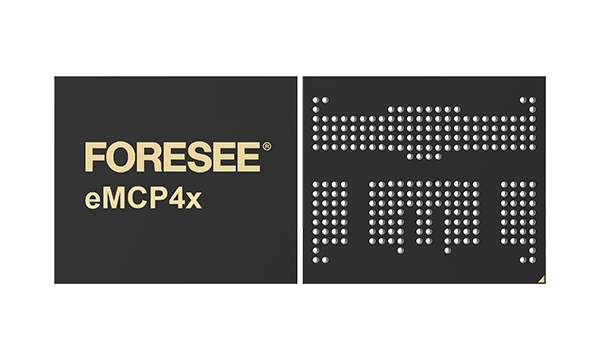

eMCP4x eMMC 5.1 + LPDDR4x 32GB+16Gb 1600MHz / 1866MHz / 2133MHz 254ball 11.5*13*1.0 mm -25℃~85℃ DRAM： VDDQ=0.6V;
eMMC: VCCQ: 1.8V/3.3V ； VCC: 3.3V.
eMCP4x eMMC 5.1 + LPDDR4x 64GB+32Gb 1600MHz / 1866MHz / 2133MHz 254ball 11.5*13*1.0 mm -25℃~85℃ DRAM： VDDQ=0.6V;
eMMC: VCCQ: 1.8V/3.3V ； VCC: 3.3V.
eMCP4x eMMC 5.1 + LPDDR4x 128GB+32Gb 1600MHz / 1866MHz / 2133MHz 254ball 11.5*13*1.0 mm -25℃~85℃ DRAM： VDDQ=0.6V;
eMMC: VCCQ: 1.8V/3.3V ； VCC: 3.3V.
Product Features
  • 01
    Good compatibility and wide application

    The product uses the eMMC 5.1 protocol and is highly compatible with various platforms. It provides the LPDDR3 and LPDDR4x interfaces and supports the mainstream SoC platform.<br> It is widely used in mainstream platforms, such as MediaTek, Amlogic, Spreadtrum, and Rockchips. Longsys has established long-term stable cooperation with various platforms, comprehensively verified its products from the early stage, and can assist customers in mass production.

  • 02
    Online upgrade and less after-sales costs

    Users can upgrade the eMCP firmware programs instantly on the PCB, which significantly reduces after-sales and maintenance procedures and costs.

  • 03
    Free Block Acceleration (FBA) and high-quality, lossless, and smooth experience

    Free blocks are used to cache data, and pSLC is preferentially used, which greatly improves performance, increases IOPS, and ensures system smoothness.

  • 04
    Power failure protection and firmware backup, ensuring data security

    Power can still be provided upon sudden power failures, the status before the power failure can be restored during the next power-on, and data can be migrated and rewritten to prevent data loss.

Application

  • Smartphone

  • Tablet

Compatible Platforms
