Industrial/Industrial Wide-temperature/Automotive eMMC
Work around the clock for extended periods in harsh environments
Product Advantages
Consult Now GO
The high reliability and long service life ensure working around the clock for extended periods.
The mean time between failures (MTBF) exceeds 20 million hours.
The product not only has good read/write performance and reliability but also helps reduce the CPU platform development difficulties.
backProduct Parameter
| Product Series | Flash Memory Medium | Capacity | Package | Operating Temperature (Tcase) | Protocol | Interface | Voltage | P/N | Size | Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|

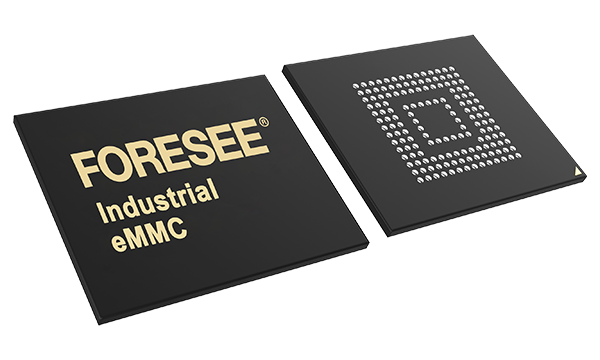

| Industrial eMMC | MLC | 8GB | BGA153 | -25℃~85℃ | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDRM008G-58A39 | 11.5*13 mm | Contact us |
| Industrial eMMC | MLC | 16GB | BGA153 | -25℃~85℃ | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDRM016G-58A43 | 11.5*13 mm | Contact us |
| Industrial eMMC | 3D NAND | 32GB | BGA153 | -25℃~85℃ | eMMC 5.1 | HS400 | 1.8V/3.3V | FSEIASLD-32G | 11.5*13 mm | Contact us |
| Industrial eMMC | 3D NAND | 64GB | BGA153 | -25℃~85℃ | eMMC 5.1 | HS400 | 1.8V/3.3V | FSEIASLD-64G | 11.5*13 mm | Contact us |
| Industrial eMMC | 3D NAND | 128GB | BGA153 | -25℃~85℃ | eMMC 5.1 | HS400 | 1.8V/3.3V | FSEIASLD-128G | 11.5*13 mm | Contact us |

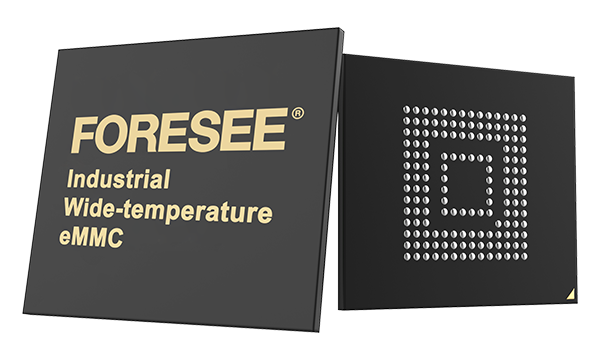

| Industrial Wide-temperature eMMC | MLC | 8GB | BGA153 | -40℃~85℃ | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDRW008G-88A39 | 11.5*13 mm | Contact us |
| Industrial Wide-temperature eMMC | MLC | 16GB | BGA153 | -40℃~85℃ | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDRW016G-88A43 | 11.5*13 mm | Contact us |
| Industrial Wide-temperature eMMC | 3D NAND | 32GB | BGA153 | -40℃~85℃ | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDRW032G-88A19 | 11.5*13 mm | Contact us |
| Industrial Wide-temperature eMMC | 3D NAND | 64GB | BGA153 | -40℃~85℃ | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDRW064G-88A19 | 11.5*13 mm | Contact us |
| Industrial Wide-temperature eMMC | 3D NAND | 128GB | BGA153 | -40℃~85℃ | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDRW128G-88A19 | 11.5*13 mm | Contact us |

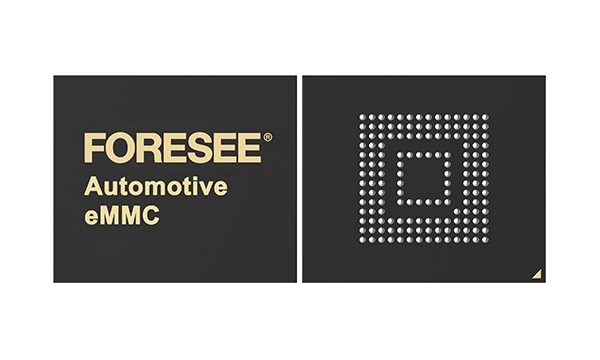

| Automotive eMMC(Grade 3) | pSLC | 8GB | BGA153 | -40°C~85°C | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDMW008G-88A37 | 11.5*13 mm | Contact us |
| Automotive eMMC(Grade 3) | MLC | 8GB | BGA153 | -40°C~85°C | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDMW008G-88A39 | 11.5*13 mm | Contact us |
| Automotive eMMC(Grade 3) | MLC | 16GB | BGA153 | -40°C~85°C | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDMW016G-88A37 | 11.5*13 mm | Contact us |
| Automotive eMMC(Grade 3) | MLC | 16GB | BGA153 | -40°C~85°C | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDMW016G-88A43 | 11.5*13 mm | Contact us |
| Automotive eMMC(Grade 3) | 3D NAND | 32GB | BGA153 | -40°C~85°C | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDMW032G-88A19 | 11.5*13 mm | Contact us |
| Automotive eMMC(Grade 3) | 3D NAND | 64GB | BGA153 | -40°C~85°C | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDMW064G-88A19 | 11.5*13 mm | Contact us |
| Automotive eMMC(Grade 2) | pSLC | 4GB | BGA153 | -40°C~105°C | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDME004G-A8A39 | 11.5*13 mm | Contact us |
| Automotive eMMC(Grade 2) | MLC | 8GB | BGA153 | -40°C~105°C | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDME008G-A8A39 | 11.5*13 mm | Contact us |
| Automotive eMMC(Grade 2) | pSLC | 8GB | BGA153 | -40°C~105°C | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDME008G-A8A43 | 11.5*13 mm | Contact us |
| Automotive eMMC(Grade 2) | MLC | 16GB | BGA153 | -40°C~105°C | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDME016G-A8A43 | 11.5*13 mm | Contact us |
| Automotive eMMC(Grade 2) | pSLC | 16GB | BGA153 | -40°C~105°C | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDME016G-A8A58 | 11.5*13 mm | Contact us |
| Automotive eMMC(Grade 2) | MLC | 32GB | BGA153 | -40°C~105°C | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDME032G-A8A58 | 11.5*13 mm | Contact us |
| Automotive eMMC(Grade 2) | MLC | 64GB | BGA153 | -40°C~105°C | eMMC 5.1 | HS400 | 1.8V/3.3V | FEMDME064G-A8A58 | 11.5*13 mm | Contact us |
Software/hardware customization + full pre-sales/after-sales service + customized verification test services, and more are supported
Product Features
-
01
The automotive eMMC is AEC-Q100 qualified.
-
02
The product meets the industrial/automotive-grade operating environment requirements.
-
03
Firmware can be customized.
Application
-
Dash cam
-
Wi-Fi router
-
Commercial display device
-
Smart TV
-
Communication base station
-
Car multimedia entertainment
-
Streaming rear-view mirror
-
Industrial IPC
-
Industrial automation
Compatible Platforms
Number | Platform |
01 | Intel |
02 | Allwinner |
03 | MediaTek |
04 | Amlogic |
05 | Ambarella |
06 | Rockchip |
07 | Marvell |
（The product supports mainstream platforms and only part of it is shown here.） | |
